• These latch locks are made out of alloy metal with Chrome plated, Nickel Plated, Brass Plated, Satin Nickeld or Black Finished.
• The latches come with a special hole which can be locked by any padlock with shackle diameter from minimum 5mm to maximum 7mm.
• Housing diameter 19mm threaded M19 x 1.0 with 2 flat, with mounting nut.
• With effective standard length (see below table).
• Fixing hole size 19.1mm x 16.6mm.
• For 90 degree RH or LH turn.
• With lipped/overlay standard cam 19mm(W) x 34mm(L).
• With 8m x 8mm cam hole, cam fixed with end screw.

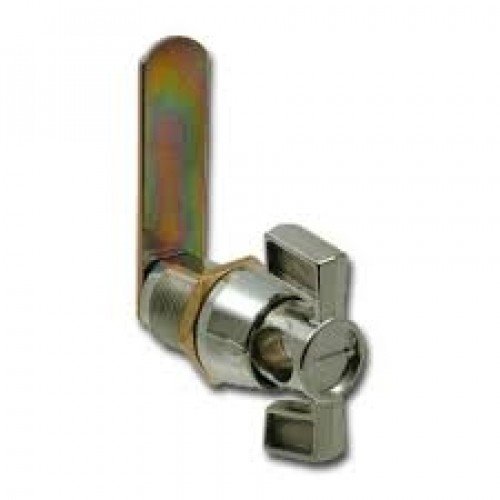

4413 – Series Latch Lock

• Latch hole diameter 7.5mm
• Recommended shackle diameter within minimum 5mm to maximum 7mm
