Description

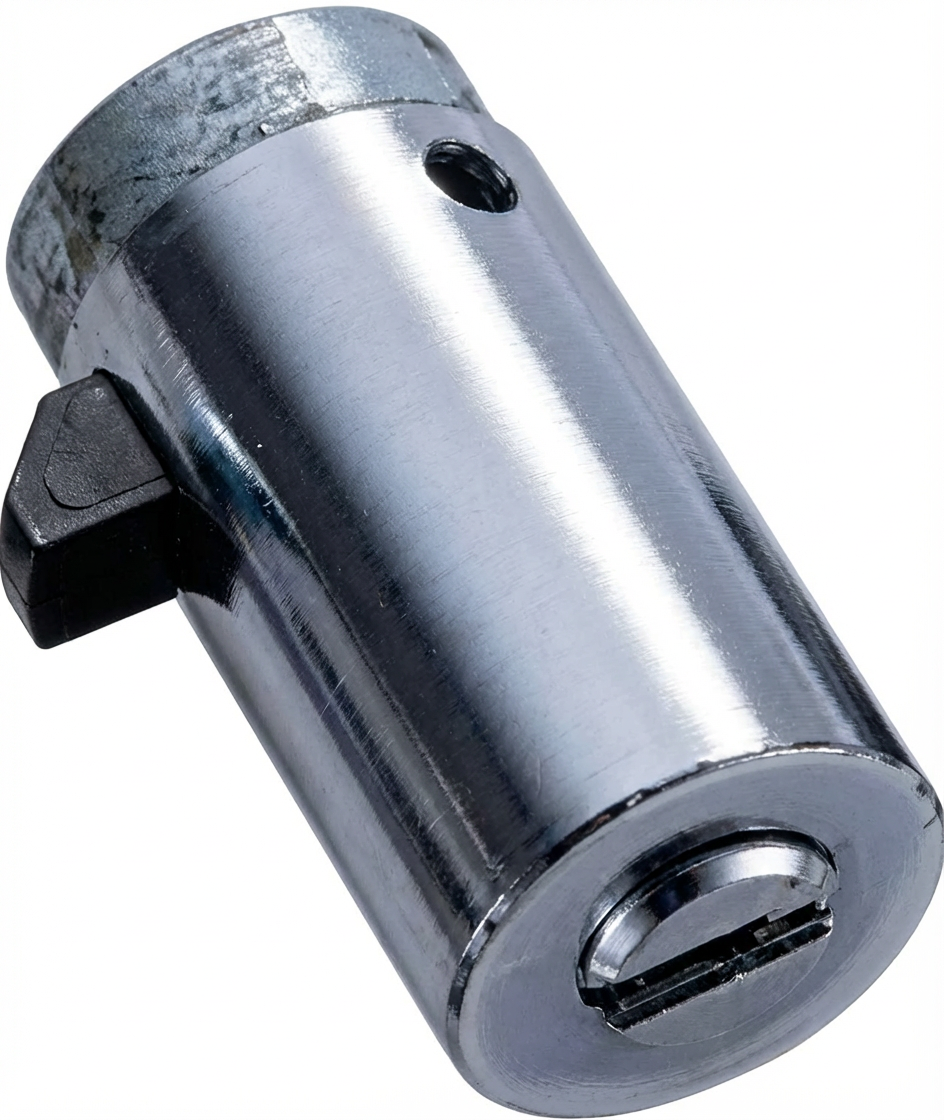

Dimple Key Plug Lock
- Fits all standard T or L handles.
- Features Baton’s 5000 series 6-pin tumbler dimple key system.
- Triple-plated hardened steel body.
- Spring-loaded hardened steel latch.
- Key removable only in the locked position.
- Available keyed-alike or keyed-different.
| Stock No. | Housing Length | Housing Dia |
|---|---|---|
| 5044 | 32mm (1-1/4″) | 19mm (3/4″) |
Dimple Key Cam Locks
- Features Baton’s 5000 series single-row 6-pin tumbler dimple key system.
- Triple plated brass housing.
- NAMA standard 3/4″ diameter with 1 flat.
- Standard cam locks have a right-turn 90 degree rotation.
- The M7 x 1.0 double ‘D’ tail piece will accomidate any cams or accessories that meets “NAMA” standards.
- For a list of optional cams, click here.
- 505x Series have key removable only in locked positon. 506x Series have key removable in locked and unlocked positions.
- Available keyed-alike or keyed-different.
| Stock No. | Thread Length | Thread Dia |
|---|---|---|
| 5055 | 16mm (5/8″) | 3/4″ (19mm, M19 x 1.0), 1 flat |
| 5057 | 22mm (7/8″) | 3/4″ (19mm, M19 x 1.0), 1 flat |
| 5059 | 28mm (9/8″) | 3/4″ (19mm, M19 x 1.0), 1 flat |
| 5065 | 16mm (5/8″) | 3/4″ (19mm, M19 x 1.0), 1 flat |
| 5067 | 22mm (7/8″) | 3/4″ (19mm, M19 x 1.0), 1 flat |
| 5069 | 28mm (9/8″) | 3/4″ (19mm, M19 x 1.0), 1 flat |
